Industrial RO with membrane care built in

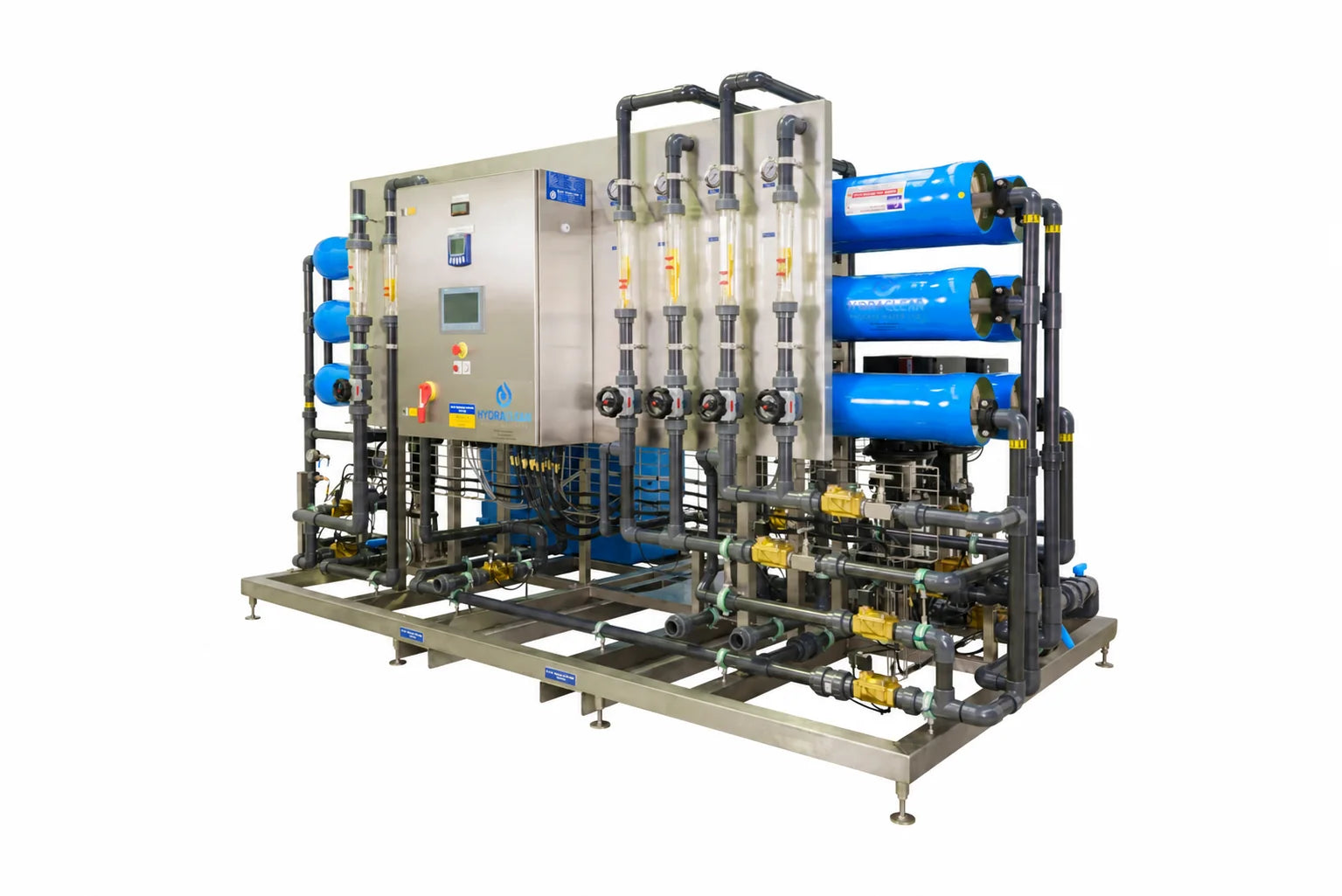

HydraCIP
Engineered reverse osmosis systems with automatic permeate flushing, an integrated clean in place circuit and PLC capacity for the wider treatment plant.
UK designed and manufacturedFactory assembled and testedLifecycle service support

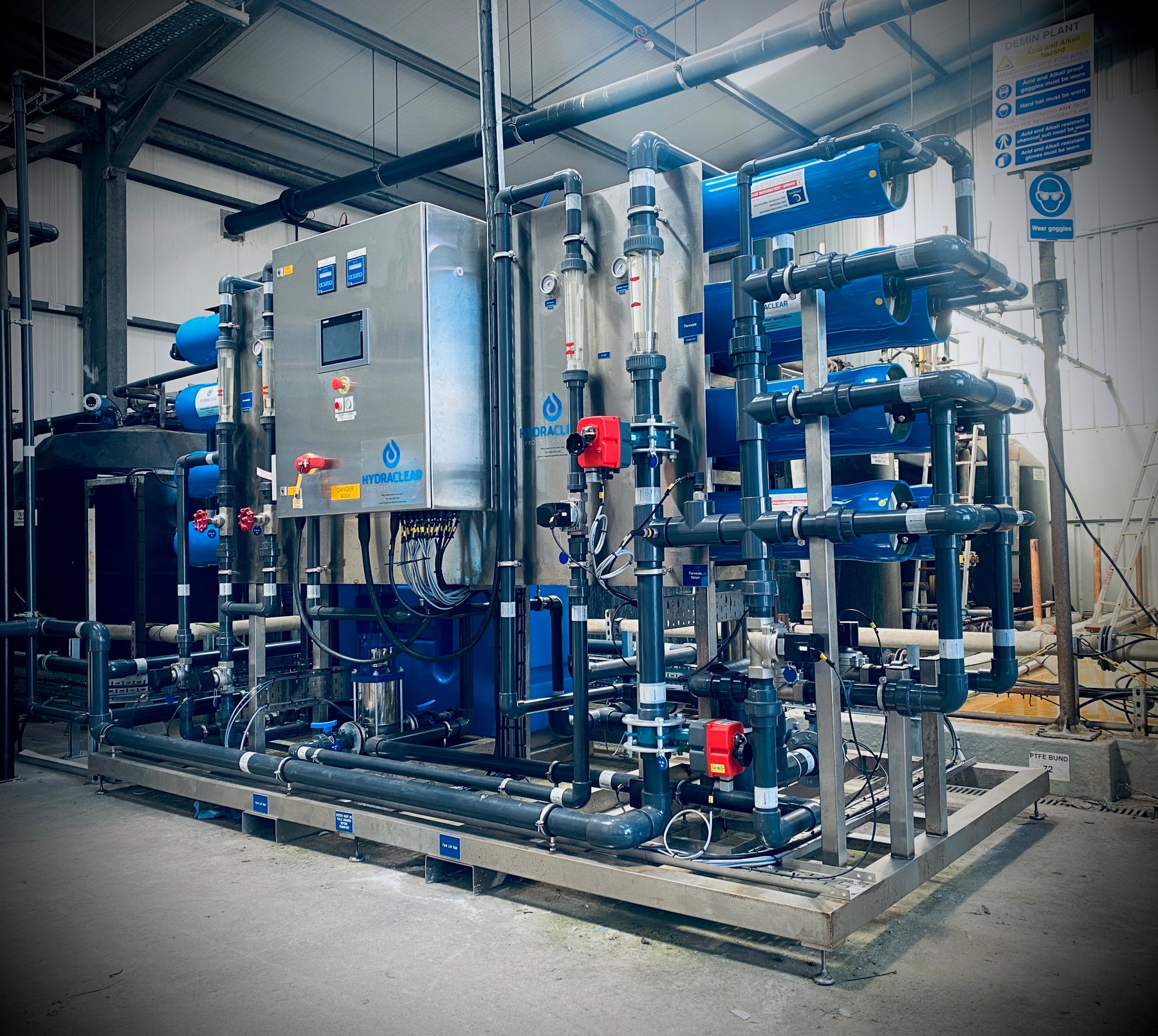

Real Hydra-Clear equipment
The product
An RO platform designed to protect its membranes.
HydraCIP incorporates the cleaning reservoir, recirculation route and automated sequence into the RO skid. The same tank stores permeate for a clean flush at production stop, helping displace concentrated feedwater before standby. Single stream, twin stream and high quality twin pass architectures are selected around capacity, resilience and final water quality.
Published figures provide a selection basis. Guaranteed performance is confirmed from the approved water analysis, operating conditions and project design.
Integrated membrane cleaning reservoir and recirculation circuit
Automatic permeate flush at controlled production stop
PLC controlled cleaning, soak and rinse sequences
HydraCIP single stream, Duo and HQ architectures
Control capacity for pretreatment, tanks, dosing and distribution
Industrial or food and beverage execution
Project specific instruments, communications and valve actuation
Factory assembly, software testing and FAT support
Range and selection data
Choose the architecture around capacity and resilience.
The final membrane array, recovery and water quality are project specific. The range below describes the treatment architecture rather than a catalogue-only machine.
| Platform | Architecture | Typical output basis | Best fit |
|---|---|---|---|
| HydraCIP | Single stream RO | 5 to 20 m³/h standard, up to 50 m³/h on request | Continuous or batch process water with integrated membrane care |

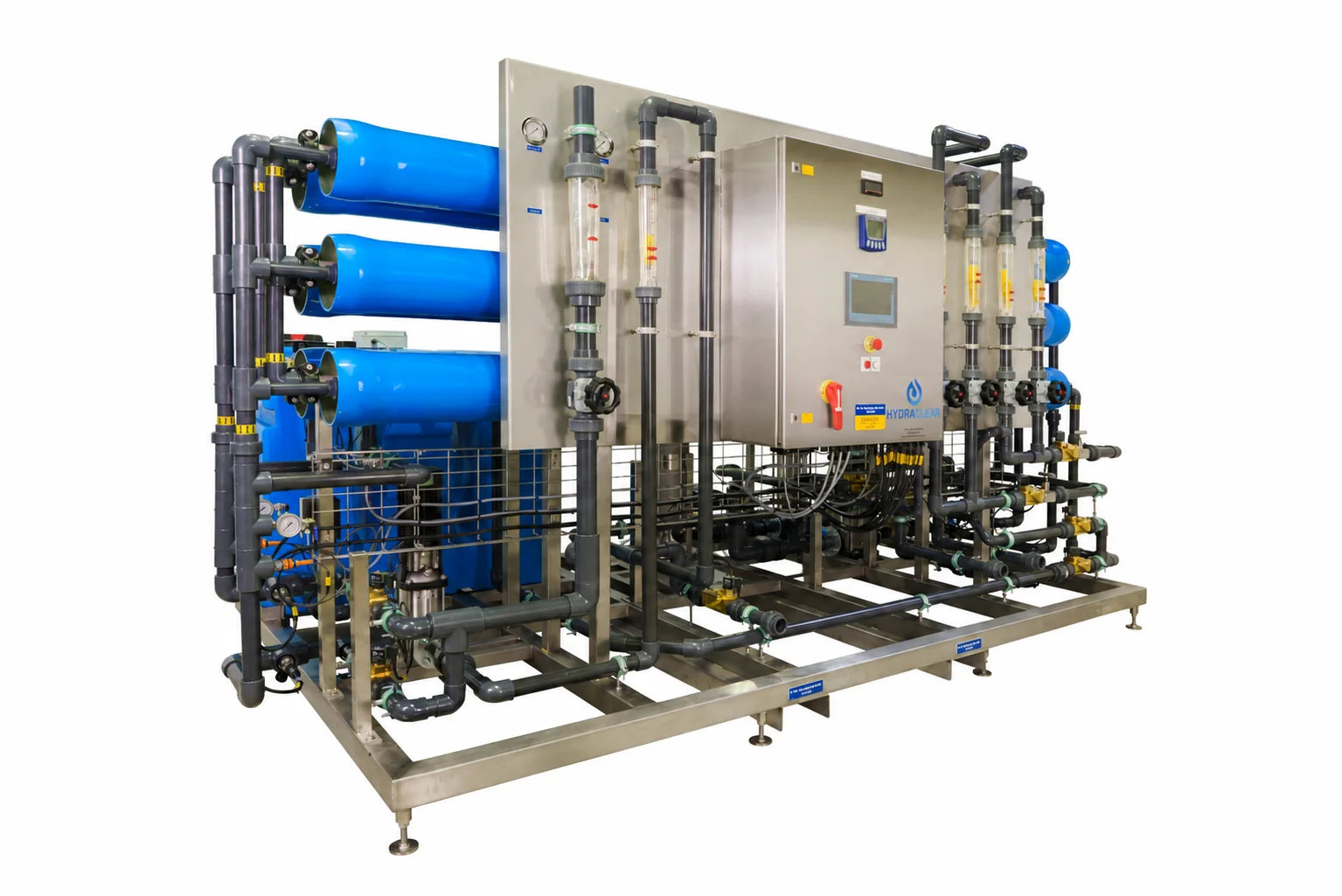

| HydraCIP Duo | Two independent RO streams | 10 to 50 m³/h combined standard duties | Duty duty output, duty standby resilience or planned maintenance |
| HydraCIP HQ | Twin pass high quality RO | Project specific output and quality | Low conductivity water and demanding final quality targets |
Product photography
See the equipment, layout and service access.

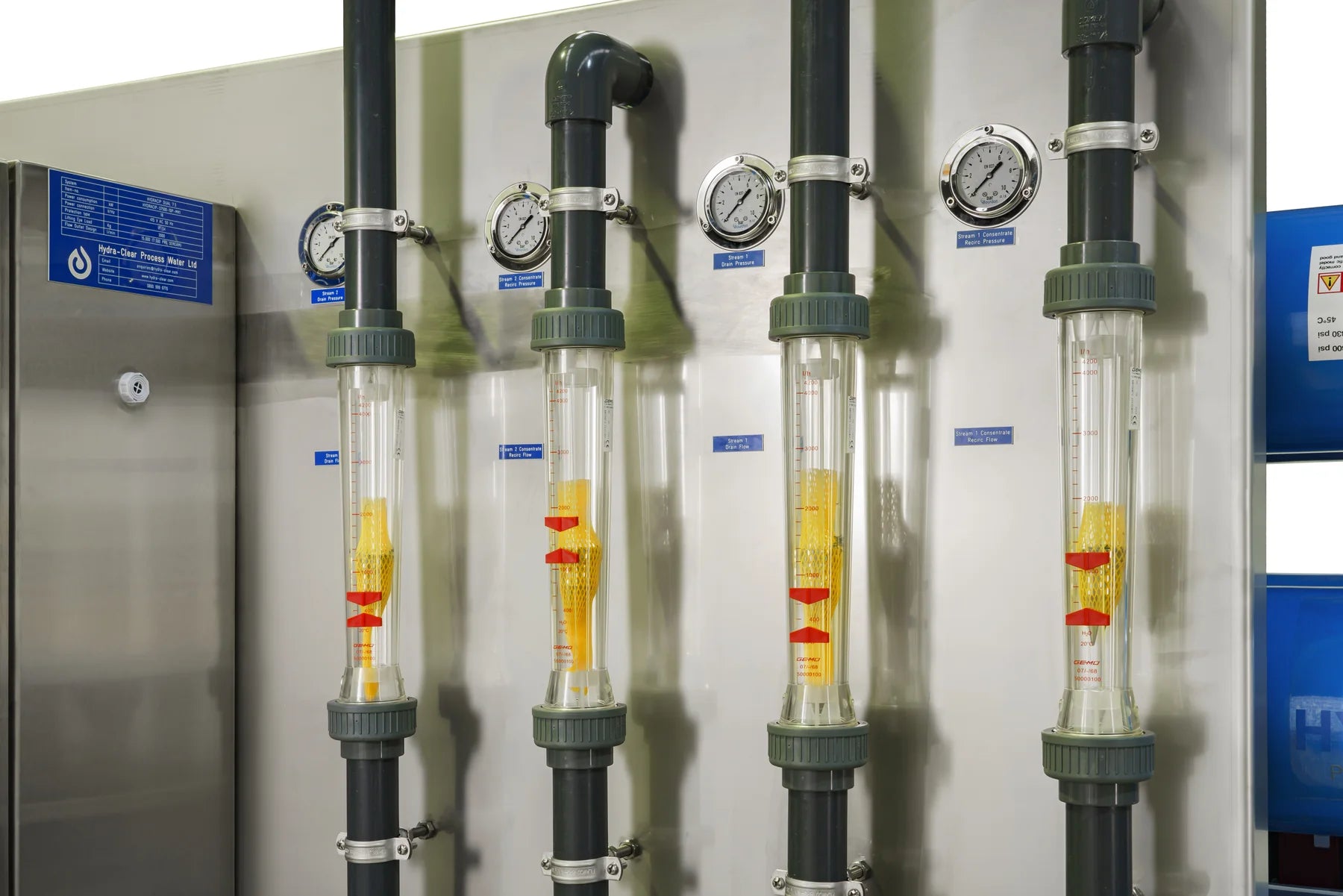

Explore the equipment, internal components and access provided for routine maintenance.
Typical applications
Where HydraCIP fits.
Continuous production
Integrated cleaning provision supports planned membrane care without a separate mobile CIP skid.
Variable demand
Single, parallel and duty standby arrangements can be sequenced around tank levels and production demand.
Fouling sensitive duties
Flush logic, trends and integrated CIP support controlled intervention when performance changes.
Critical utilities
Independent streams and twin pass configurations support resilience and demanding water quality.
Brochures and technical data
Download the documents for HydraCIP.
Product literature is also available from the central Downloads page. Keeping it here makes the specification route faster for engineers and procurement teams.
Keep the equipment performing after handover.
Discuss service supportHydra-Clear provides commissioning, planned maintenance, membrane care, resin and media replacement, spares, controls support and optimisation across equipment from every manufacturer.
