High purity and hygienic reverse osmosis
HydraCONOMY Hygienic
A pharmaceutical grade RO platform with hygienic 316L process construction, stainless membrane housings and repeatably calibratable electronic instrumentation.
UK designed and manufacturedFactory assembled and testedLifecycle service support
Real Hydra-Clear equipment
The product
High purity RO engineered for controlled water systems.
HydraCONOMY Hygienic applies a defined sanitary mechanical platform to pharmaceutical, healthcare, food, beverage and other high criticality duties. The system uses full bore welded and hygienic connections, dead leg minimised routing, electropolished inlet filtration and Siemens automation. Documentation and validation support are agreed with the project scope.
Published figures provide a selection basis. Guaranteed performance is confirmed from the approved water analysis, operating conditions and project design.
316L pharmaceutical grade hygienic process tubing
Full bore welded and hygienic tri-clamp connections
Dead leg minimised and drainable routing
Electropolished 316L inlet filter housing
316 stainless membrane housings
Electronic flow, pressure and conductivity measurement
Electric actuated diaphragm valves
FDA compliant wetted elastomers where specified
Range and selection data
Four standard duties on a hygienic platform.
The standard model family provides a selection basis. Final membrane design, recovery, connection orientation and documentation package follow the approved project requirement.
| Model | Nominal permeate | Nominal length | Membrane housings | Connections |
|---|---|---|---|---|
| 5000 | 5,000 L/h | 3,100 mm | 316 stainless | Project sized hygienic tri-clamp |
| 7500 | 7,500 L/h | 3,100 mm | 316 stainless | Project sized hygienic tri-clamp |
| 10000 | 10,000 L/h | 4,000 mm | 316 stainless | Project sized hygienic tri-clamp |
| 12500 | 12,500 L/h | 4,000 mm | 316 stainless | Project sized hygienic tri-clamp |

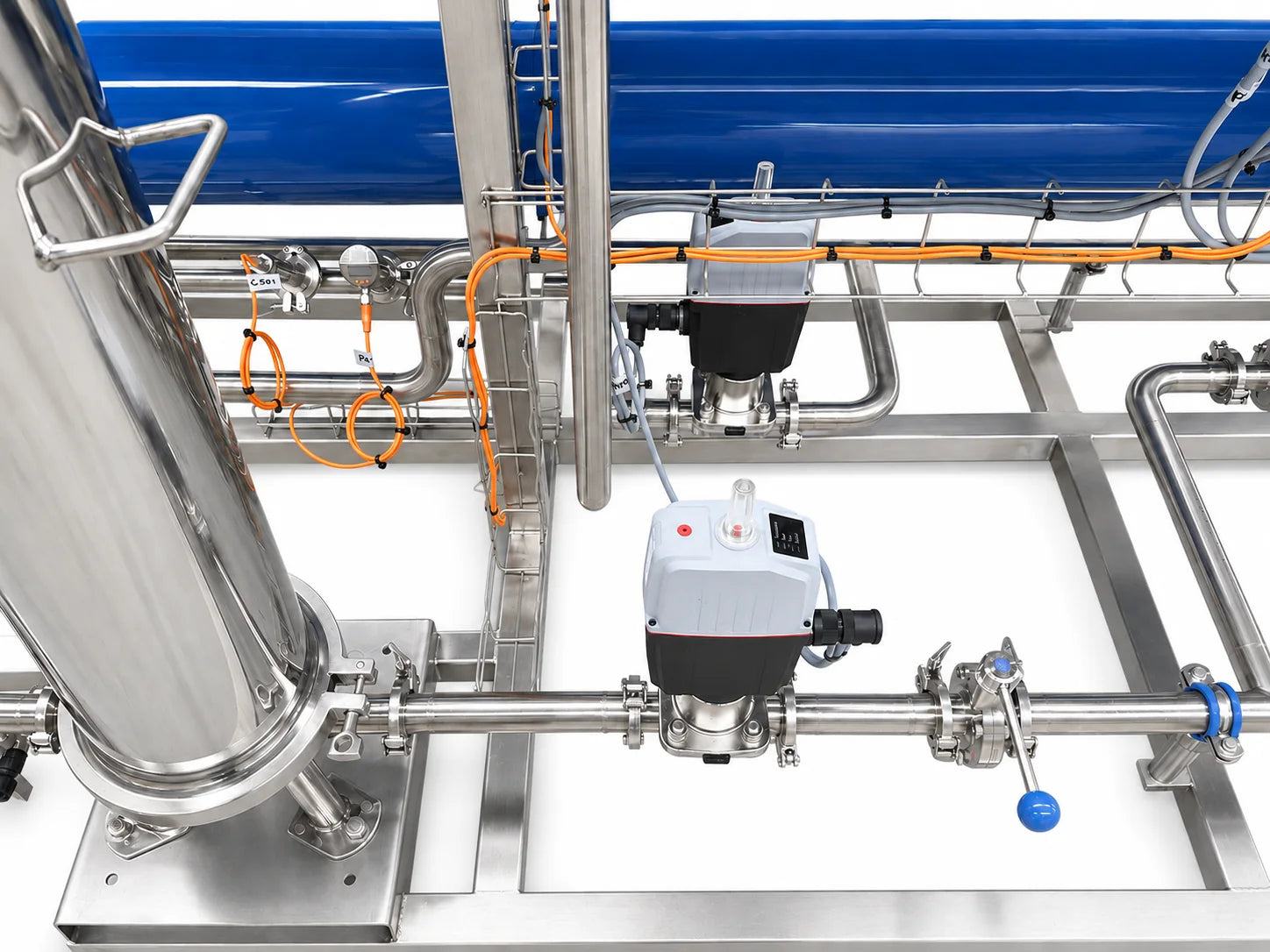

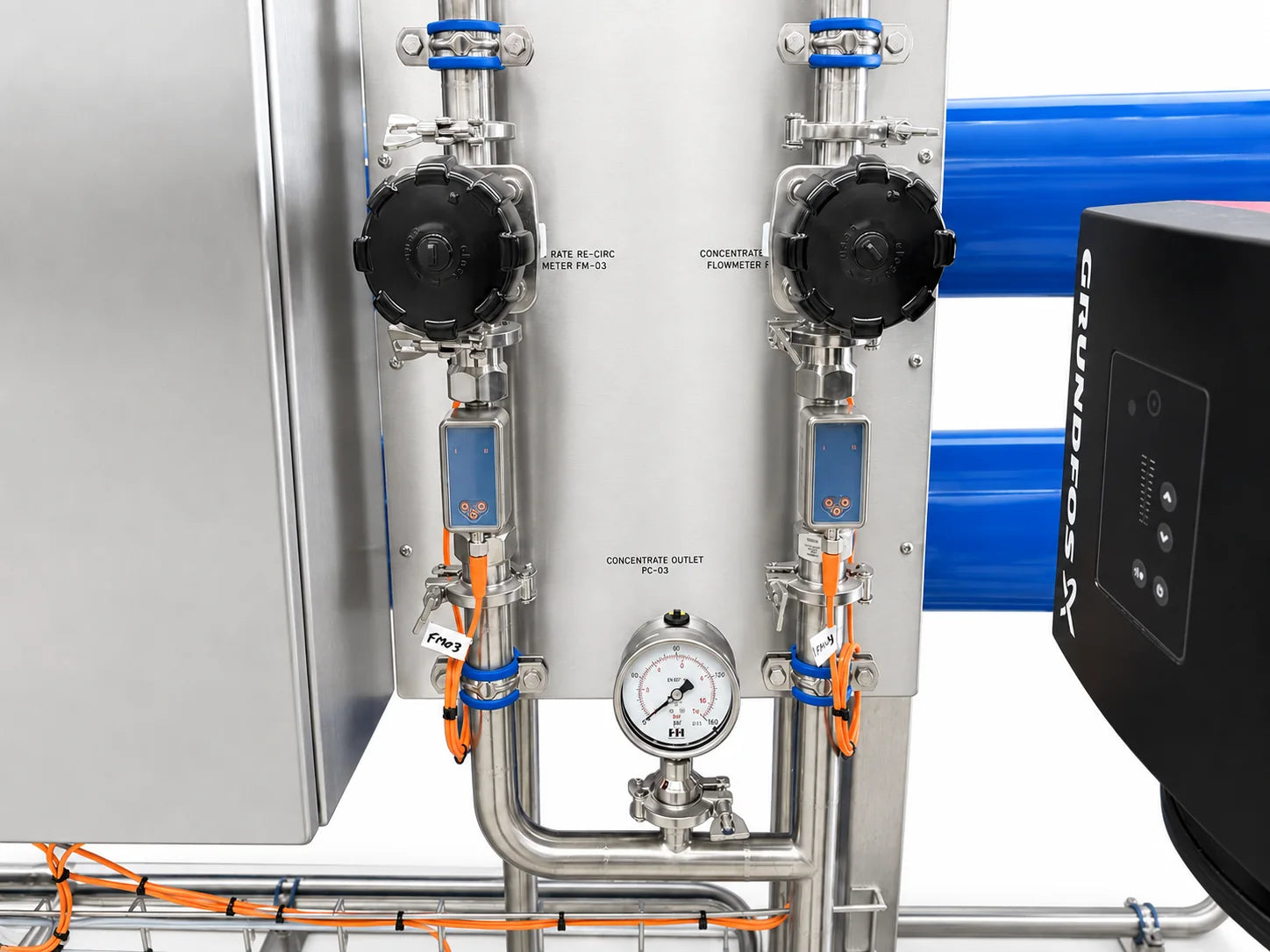

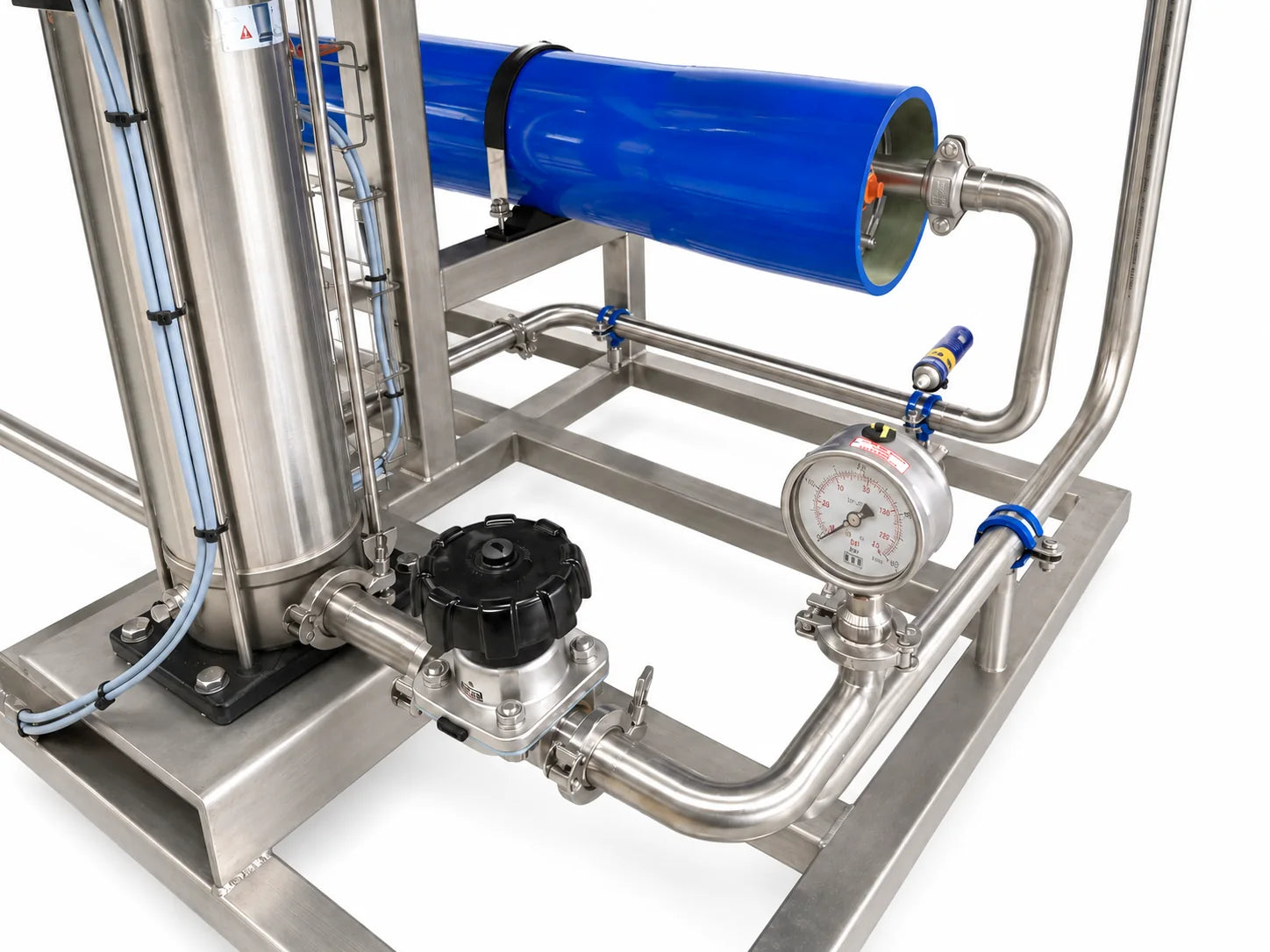

Product photography
See the equipment, layout and service access.
Explore the equipment, internal components and access provided for routine maintenance.
Typical applications
Where HydraCONOMY Hygienic fits.
Pharmaceutical water systems
RO generation for controlled storage, distribution and downstream polishing arrangements.
Healthcare and critical utilities
Monitored, maintainable water production where reliability and evidence matter.
Food and beverage
Hygienic construction for suitable ingredient, formulation and process utility duties.
High purity process water
A first or second pass RO stage ahead of HydraCDI, mixed bed or specialist polishing.
Brochures and technical data
Download the documents for HydraCONOMY Hygienic.
Product literature is also available from the central Downloads page. Keeping it here makes the specification route faster for engineers and procurement teams.
Keep the equipment performing after handover.
Discuss service supportHydra-Clear provides commissioning, planned maintenance, membrane care, resin and media replacement, spares, controls support and optimisation across equipment from every manufacturer.
