Compact commercial reverse osmosis
HydraJET Lite
Enclosed 300, 600 and 1,000 litre per hour reverse osmosis systems with an integral tank, Lowara variable speed pump and model specific 4040 membrane array.
UK designed and manufacturedFactory assembled and testedLifecycle service support
Real Hydra-Clear equipment
The product
Commercial RO capability in a clean, narrow enclosure.
HydraJET Lite packages storage, pumping, membrane separation, basic pretreatment, instrumentation and automatic control into one serviceable cabinet. It is intended for commercial and light industrial duties where a tidy installation and dependable low mineral water supply matter.
Published figures provide a selection basis. Guaranteed performance is confirmed from the approved water analysis, operating conditions and project design.
Lowara horizontal pump with integrated variable speed drive
One, two or three HCULP4040 membrane elements
60 litre integral break and buffer tank
One 10 inch carbon cartridge filter
Dedicated HCROC automatic RO controller

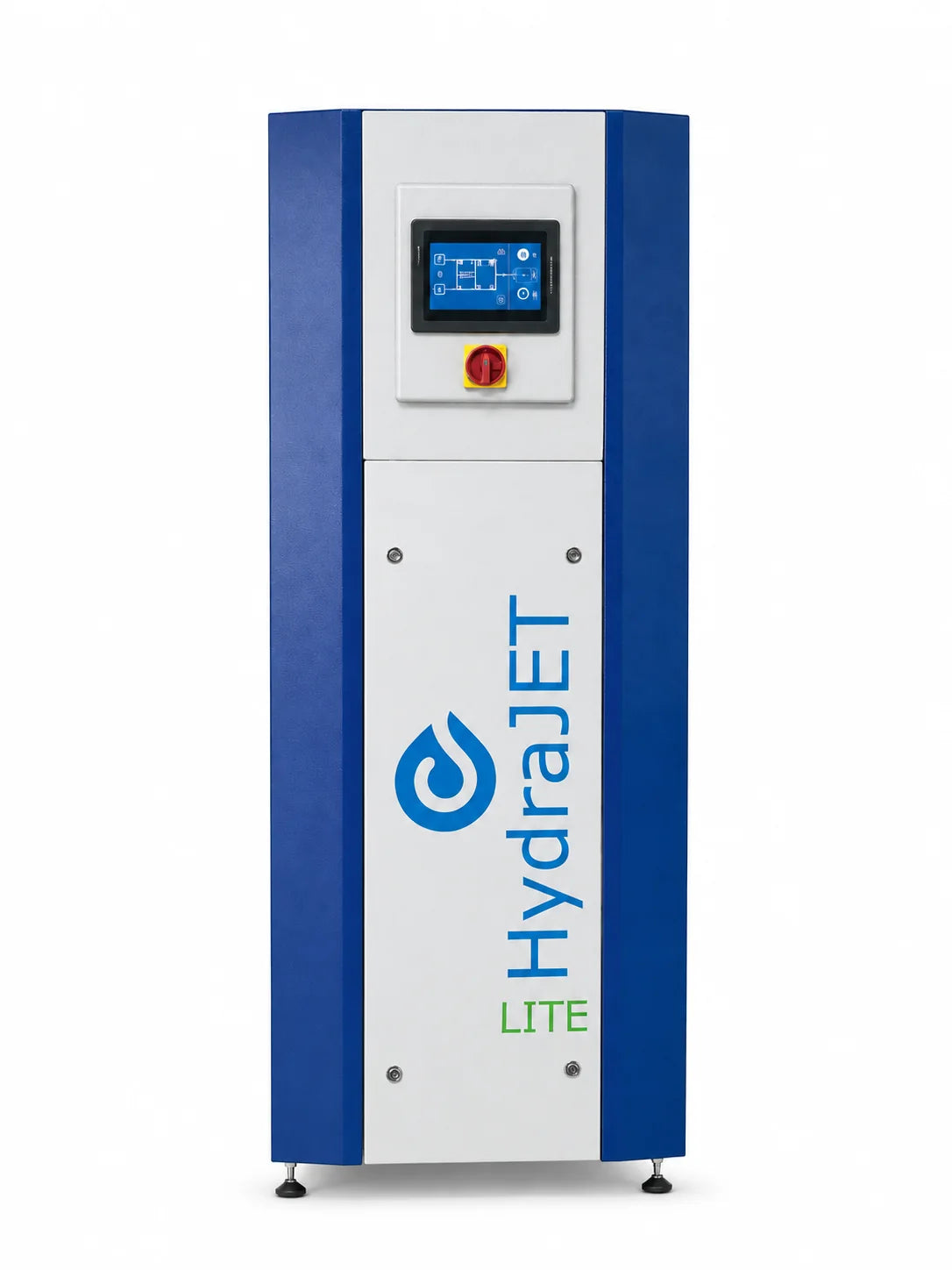

Optional Siemens PLC and colour HMI upgrade
304 stainless steel process pipework
Front and rear service access
Range and selection data
Three standard output duties.
Nominal feed and concentrate flows are shown at approximately 75 percent recovery. Final recovery is confirmed from the feedwater analysis.
| Model | Permeate | Feed | Concentrate | RO array |
|---|---|---|---|---|
| Lite 300 | 300 L/h | 400 L/h | 100 L/h | 1 x 4040 |
| Lite 600 | 600 L/h | 800 L/h | 200 L/h | 2 x 4040 |
| Lite 1000 | 1,000 L/h | 1,330 L/h | 330 L/h | 3 x 4040 |

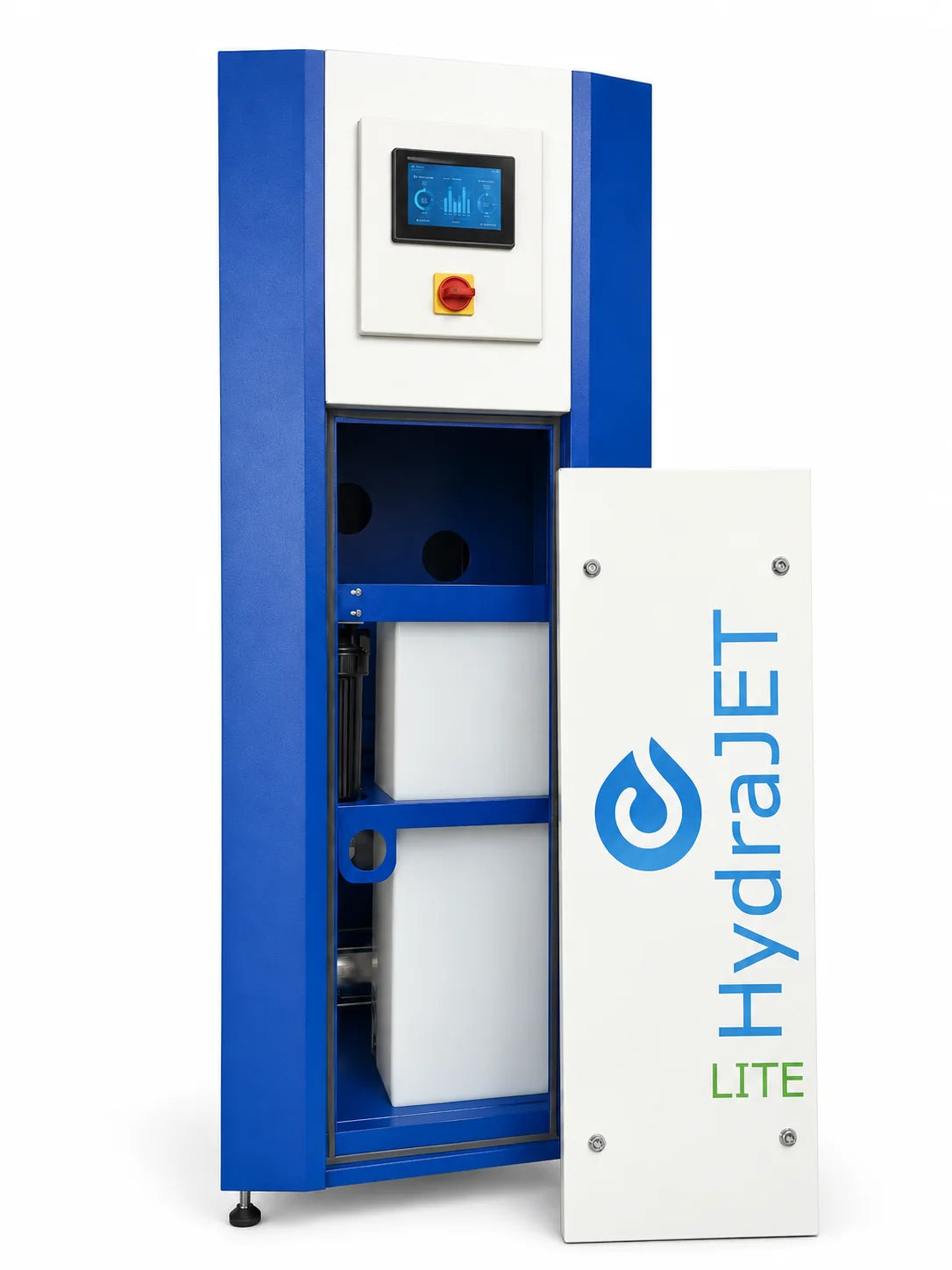

Product photography
See the equipment, layout and service access.
Explore the equipment, internal components and access provided for routine maintenance.
Typical applications
Where HydraJET Lite fits.
Commercial process water
Compact purified water production for estates, laboratories and light manufacturing.
Boiler make-up
Reduced dissolved mineral loading can support lower blowdown and better scale control.
Rinse and wash water
Stable low mineral water helps reduce spotting and process variation.
Equipment feedwater
A packaged supply for washers, humidifiers and equipment requiring controlled inlet water.
Brochures and technical data
Download the documents for HydraJET Lite.
Product literature is also available from the central Downloads page. Keeping it here makes the specification route faster for engineers and procurement teams.
Keep the equipment performing after handover.
Discuss service supportHydra-Clear provides commissioning, planned maintenance, membrane care, resin and media replacement, spares, controls support and optimisation across equipment from every manufacturer.
