Industrial process water filtration
HydraFIL
Modular filtration systems for suspended solids, turbidity, chlorine, organics, iron, manganese and protection of downstream membranes and process equipment.
UK designed and manufacturedFactory assembled and testedLifecycle service support
Real Hydra-Clear equipment
The product
Remove the right contaminant before it becomes a downstream cost.
HydraFIL is configured from the water analysis and hydraulic duty. Systems can use cartridge, bag, multimedia, sand, catalytic or activated carbon filtration in simplex, duplex or multi vessel arrangements. Automatic backwash, local instruments and PLC integration are selected where the operating duty requires them.
Published figures provide a selection basis. Guaranteed performance is confirmed from the approved water analysis, operating conditions and project design.
Cartridge and bag filtration
Multimedia and depth filtration
Activated carbon treatment
Catalytic iron and manganese media
Simplex, duplex and parallel arrangements
Automatic backwash and monitored pressure loss
Skid mounted or site installed packages
Integration with RO, softening and recovery systems
Range and selection data
Select the filtration mechanism from the contaminant.
Media, vessel diameter, bed depth, contact time and backwash demand are confirmed from the feedwater analysis and required treated water quality.
| Treatment route | Primary duty | Typical downstream benefit |
|---|---|---|
| Cartridge or bag filtration | Defined particulate removal | Simple protection and final filtration |
| Multimedia filtration | Suspended solids and turbidity | Protects membranes, valves and heat exchangers |
| Activated carbon | Chlorine and selected organics | Protects RO membranes and process quality |
| Catalytic media | Iron and manganese | Conditions borehole and source water |

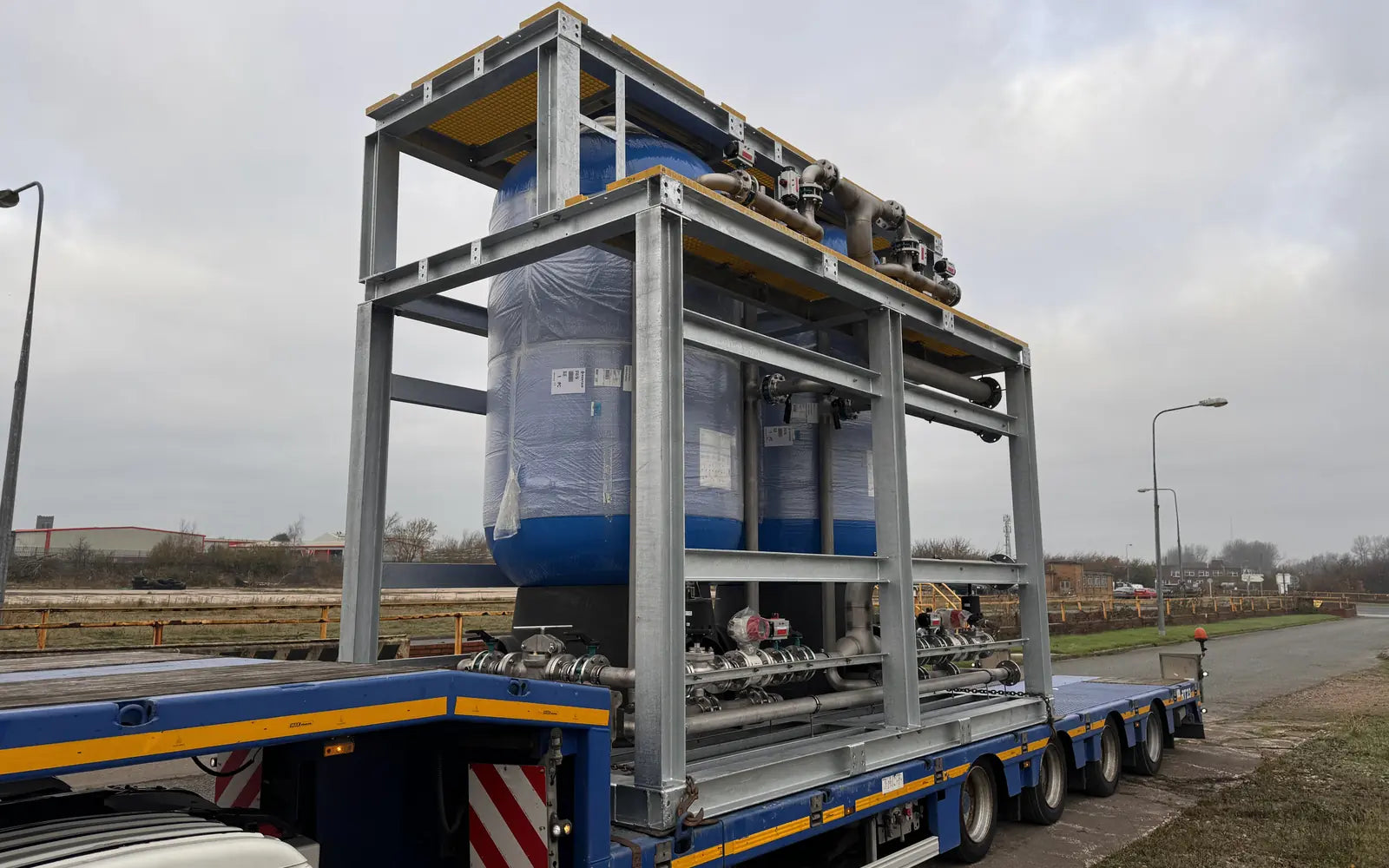

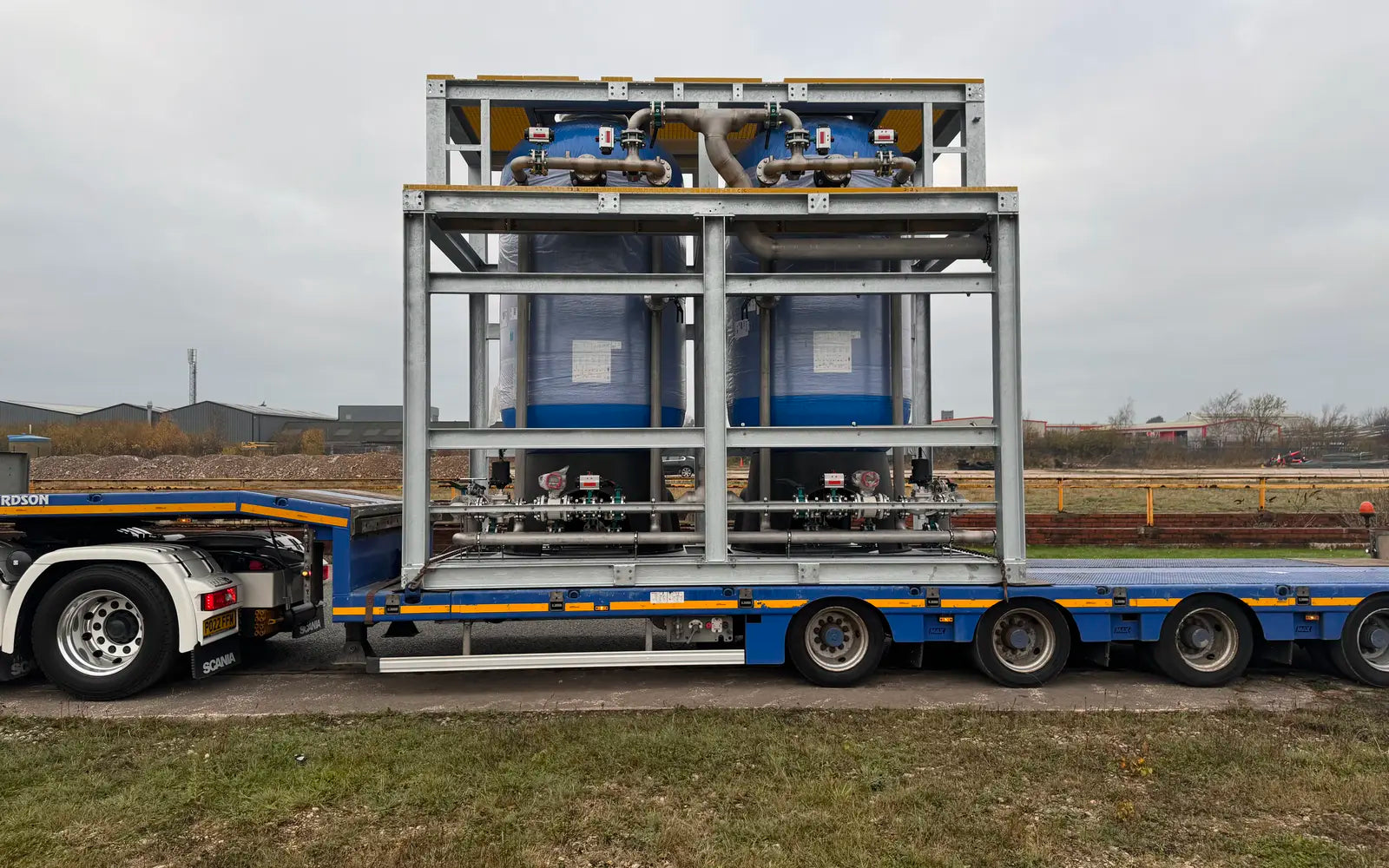

Product photography
See the equipment, layout and service access.
Explore the equipment, internal components and access provided for routine maintenance.
Typical applications
Where HydraFIL fits.
RO pretreatment
Reduce particulate, chlorine and organic loading before sensitive membranes.
Borehole and surface water
Treat variable raw water sources using media selected from the analysis.
Process protection
Protect nozzles, heat exchangers, valves and production equipment from solids and deposits.
Water recovery
Condition suitable recovered water ahead of polishing, disinfection or return to process.
Brochures and technical data
Download the documents for HydraFIL.
Product literature is also available from the central Downloads page. Keeping it here makes the specification route faster for engineers and procurement teams.
Keep the equipment performing after handover.
Discuss service supportHydra-Clear provides commissioning, planned maintenance, membrane care, resin and media replacement, spares, controls support and optimisation across equipment from every manufacturer.
