Engineered industrial reverse osmosis
HydraCONOMY Industrial
A robust stainless RO platform with four standard duties from 5 to 12.5 cubic metres per hour, Siemens PLC control and engineered systems available up to 25 cubic metres per hour.
UK designed and manufacturedFactory assembled and testedLifecycle service support
Real Hydra-Clear equipment
The product
A defined platform with project specific membrane design.

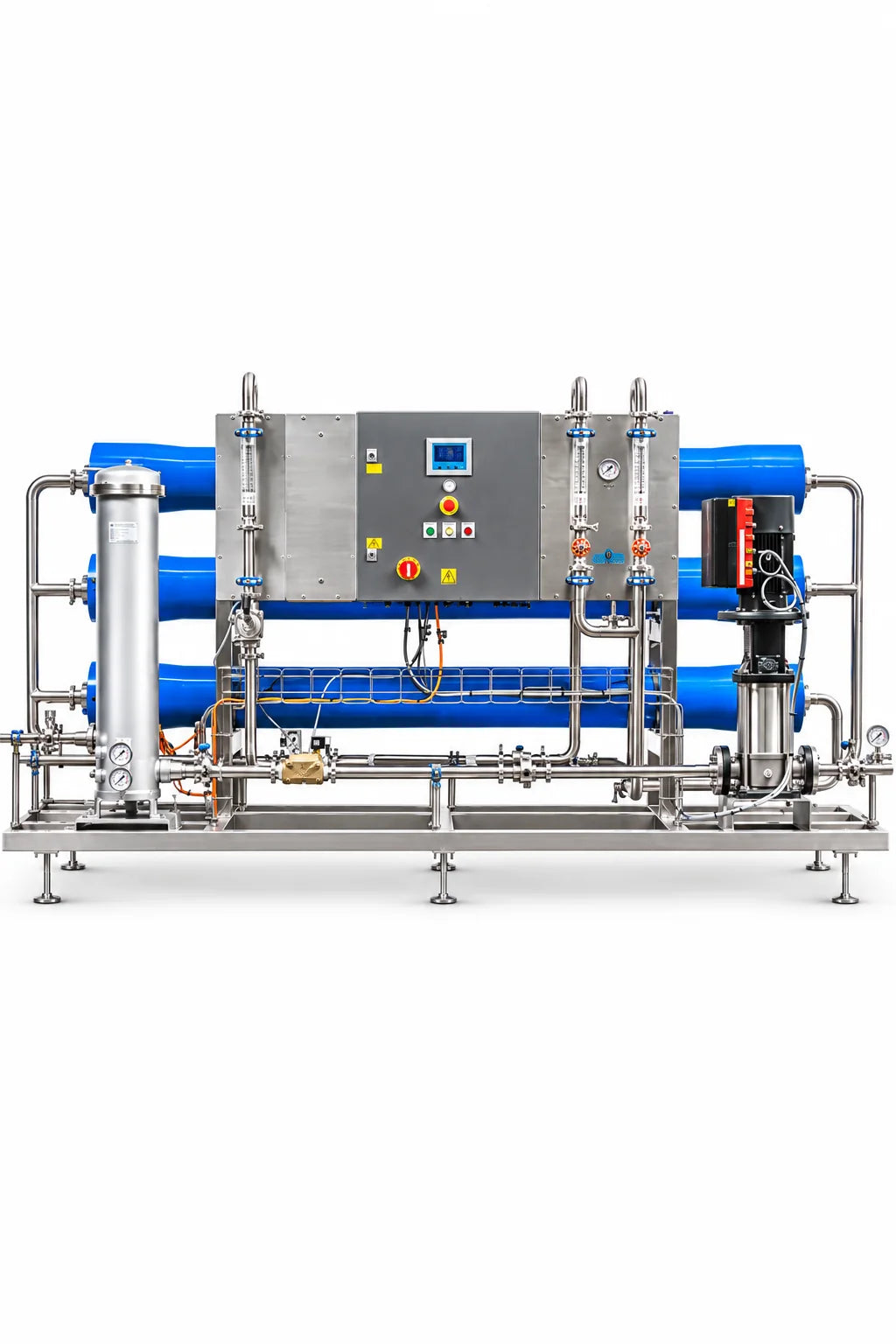

HydraCONOMY Industrial combines 316 stainless dairy tube process pipework, an accessible fabricated skid, stainless inlet filtration, VFD controlled pumping and Siemens automation. The membrane quantity, array, recovery and final instrument package are released only after the water analysis and operating duty have been reviewed.
Published figures provide a selection basis. Guaranteed performance is confirmed from the approved water analysis, operating conditions and project design.

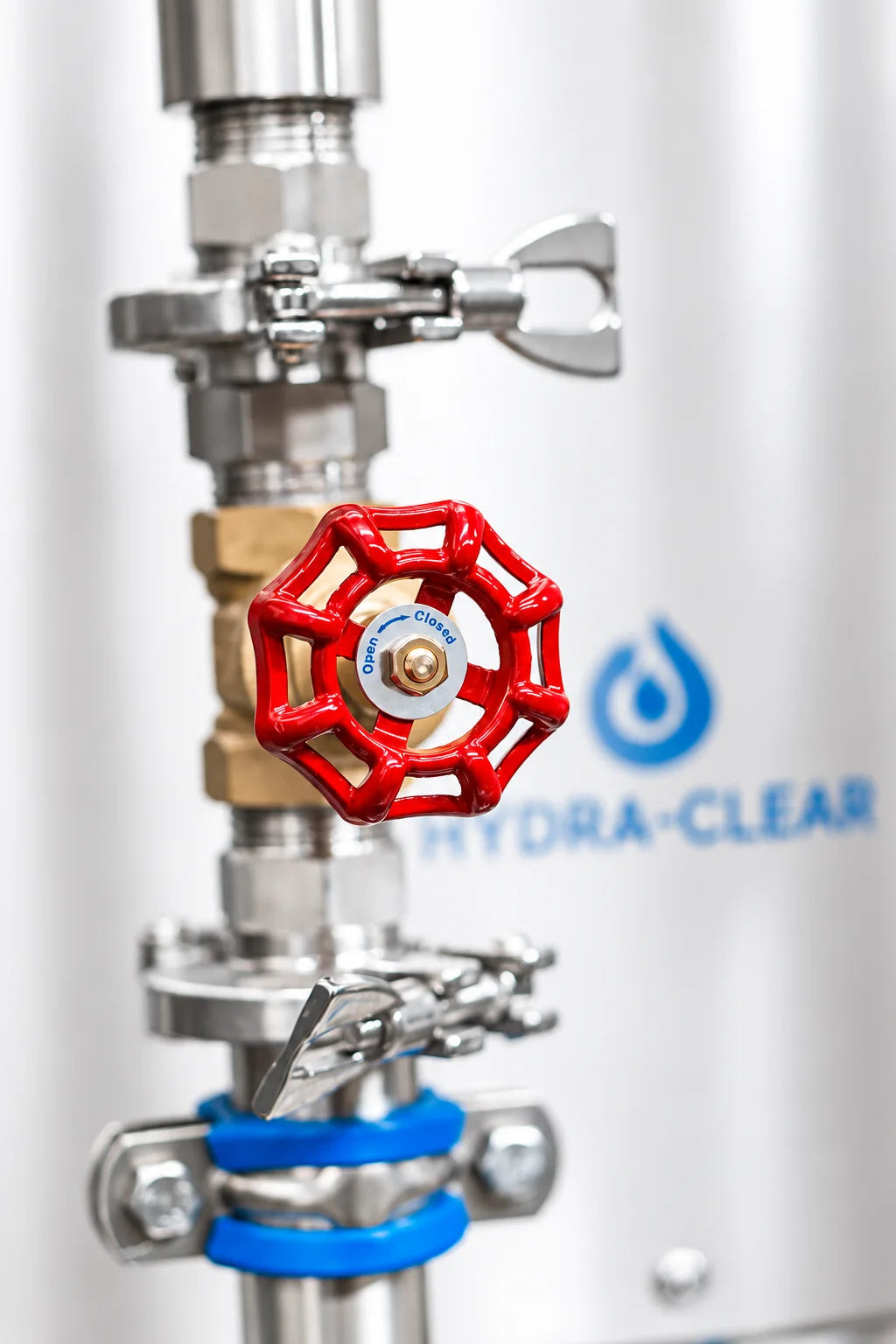

316 stainless dairy tube process pipework
Three 30 inch stainless inlet cartridge filters
Composite membrane housings as standard, 316 stainless optional
Siemens PLC and 7 inch Unified HMI
VFD controlled multistage pressure pump
Electronic conductivity monitoring as standard

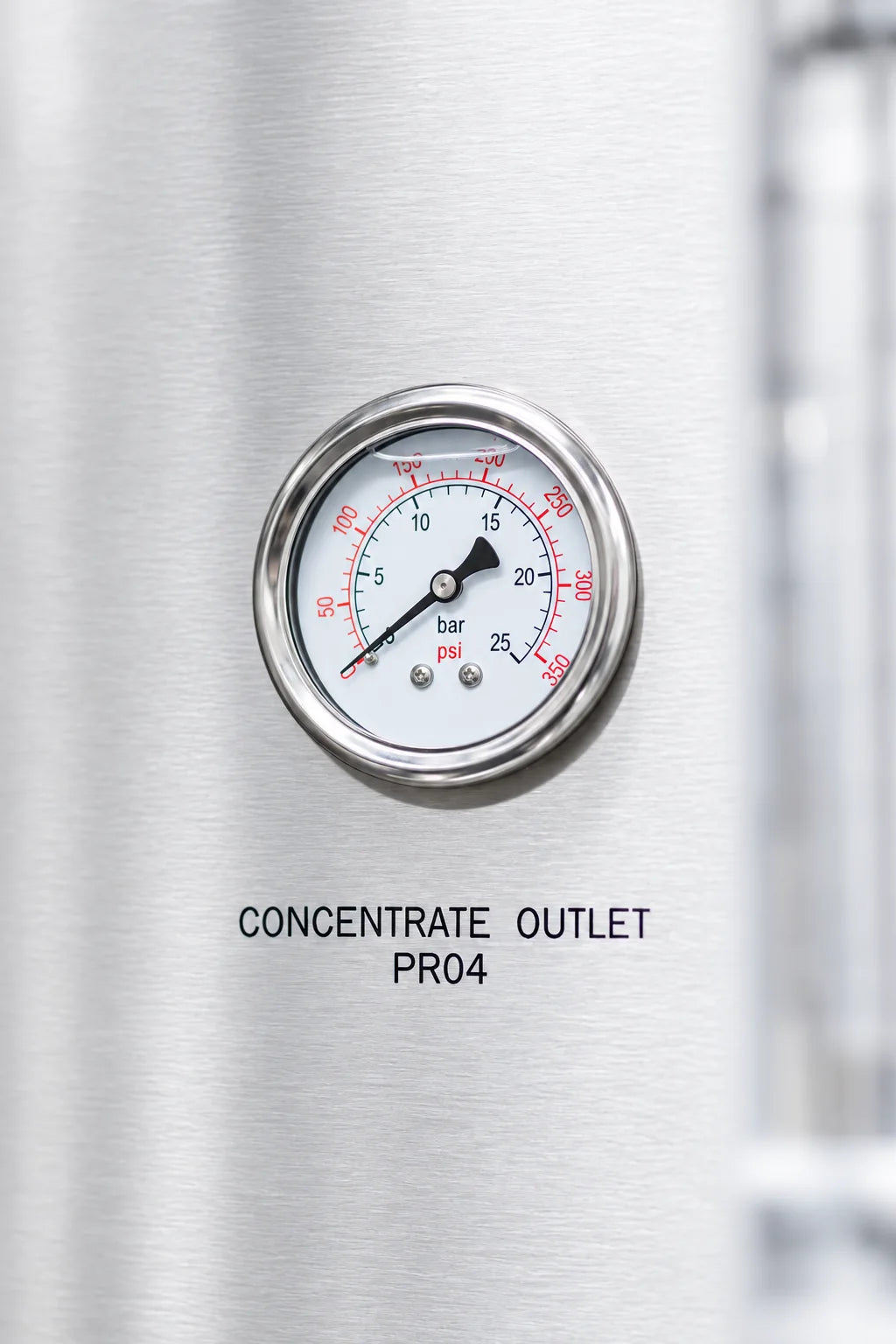

Mechanical local flow and pressure indication
Electronic flow, pressure and communications available as upgrades
Range and selection data
Four standard platform duties.
The published models share a common control and construction philosophy. Final recovery, membrane count, concentrate flow and connections are issued with the approved project design.
| Model | Nominal permeate | Nominal length | Motor | Electrical supply |
|---|---|---|---|---|
| 5000 | 5,000 L/h | 3,100 mm | 7.5 kW | 415 V, three phase |
| 7500 | 7,500 L/h | 3,100 mm | 7.5 kW | 415 V, three phase |
| 10000 | 10,000 L/h | 4,000 mm | 7.5 kW | 415 V, three phase |
| 12500 | 12,500 L/h | 4,000 mm | 7.5 kW | 415 V, three phase |
Product photography
See the equipment, layout and service access.
Explore the equipment, internal components and access provided for routine maintenance.
Typical applications
Where HydraCONOMY Industrial fits.
Industrial production water
Scalable RO capacity for manufacturing, formulation, washing and process make-up.
Boiler make-up
Lower TDS feedwater supports blowdown and scale control across steam systems.
Cooling and utility water
Consistent treated water for suitable make-up and utility duties.
Water recovery
A configurable RO stage for suitable clarified and pretreated recovery streams.
Brochures and technical data
Download the documents for HydraCONOMY Industrial.
Product literature is also available from the central Downloads page. Keeping it here makes the specification route faster for engineers and procurement teams.
Keep the equipment performing after handover.
Discuss service supportHydra-Clear provides commissioning, planned maintenance, membrane care, resin and media replacement, spares, controls support and optimisation across equipment from every manufacturer.
