Standard commercial water softening
HydraSOFT Commercial
Three control platforms, four standard resin fills and flexible portable or free standing arrangements for dependable commercial hardness removal.
UK designed and manufacturedFactory assembled and testedLifecycle service support
Real Hydra-Clear equipment
The product
Choose the control valve and resin capacity separately.
The HydraSOFT commercial range separates valve selection from resin volume, allowing flow, capacity and resilience to be matched more closely to the site. Standard black vessel packages use 100, 200, 250 or 300 litres of resin. Engineered builds extend HCW150 and HC150 systems to 350 litres and HC200 systems to 1,000 litres per vessel.
Published figures provide a selection basis. Guaranteed performance is confirmed from the approved water analysis, operating conditions and project design.
HCW150 twin alternating control for continuous softened water
HC150 flexible commercial control with proportional regeneration
HC200 higher capacity platform for larger commercial duties
Metered demand initiated regeneration
Portable factory assembled skid option
Free standing and customer installed alternatives
Simplex, paired and multi vessel arrangements
System sizing based on flow and ionic load
Range and selection data
Three control platforms.
Valve flow ratings are selection data. Final system flow also depends on vessel diameter, distributor design and resin loading.
| Platform | Control approach | Continuous flow | Peak flow | Engineered resin envelope |
|---|---|---|---|---|
| HCW150 | Twin alternating | 9.0 m³/h | 12.0 m³/h | Up to 350 L per vessel |
| HC150 | Flexible commercial | 10.0 m³/h | 13.0 m³/h | Up to 350 L per vessel |
| HC200 | Higher capacity commercial | 16.0 m³/h | 20.4 m³/h | Up to 1,000 L per vessel |

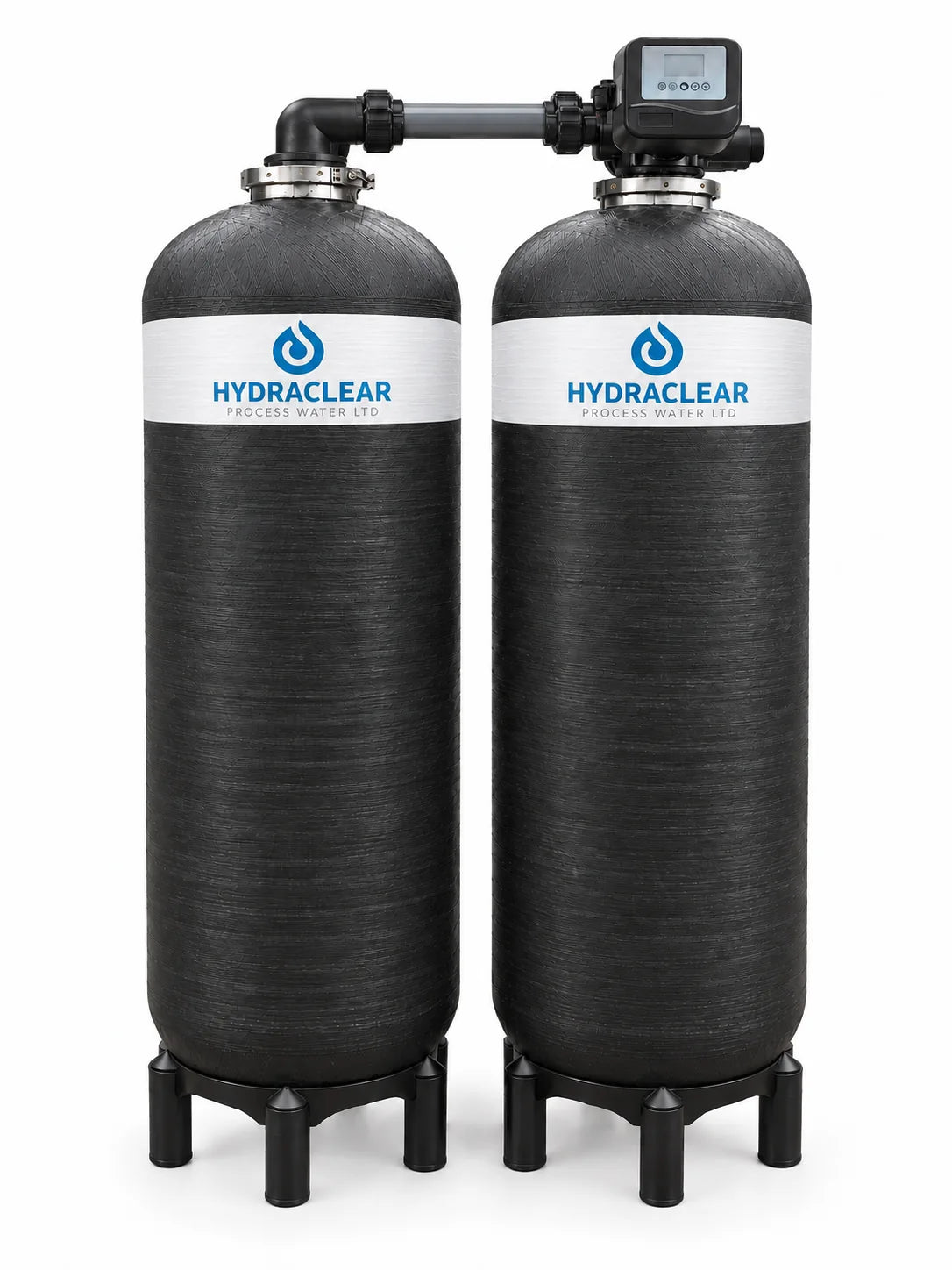

Product photography
See the equipment, layout and service access.
Explore the equipment, internal components and access provided for routine maintenance.
Typical applications
Where HydraSOFT Commercial fits.
Boiler feed pretreatment
Hardness removal protects heat transfer surfaces and downstream boiler chemistry.
Reverse osmosis pretreatment
Stable softened water reduces hardness scale risk on membranes.
Commercial process water
Duty sized softening for production, washing and general utility use.
Continuous supply duties
Twin alternating and multi vessel options maintain softened water during regeneration.
Brochures and technical data
Download the documents for HydraSOFT Commercial.
Product literature is also available from the central Downloads page. Keeping it here makes the specification route faster for engineers and procurement teams.
Keep the equipment performing after handover.
Discuss service supportHydra-Clear provides commissioning, planned maintenance, membrane care, resin and media replacement, spares, controls support and optimisation across equipment from every manufacturer.
