Enclosed industrial reverse osmosis
HydraJET
A higher output enclosed RO range covering 1,500 to 3,000 litres per hour, with integral feed storage, Lowara pumping and six to twelve 4040 membrane elements.
UK designed and manufacturedFactory assembled and testedLifecycle service support
Real Hydra-Clear equipment

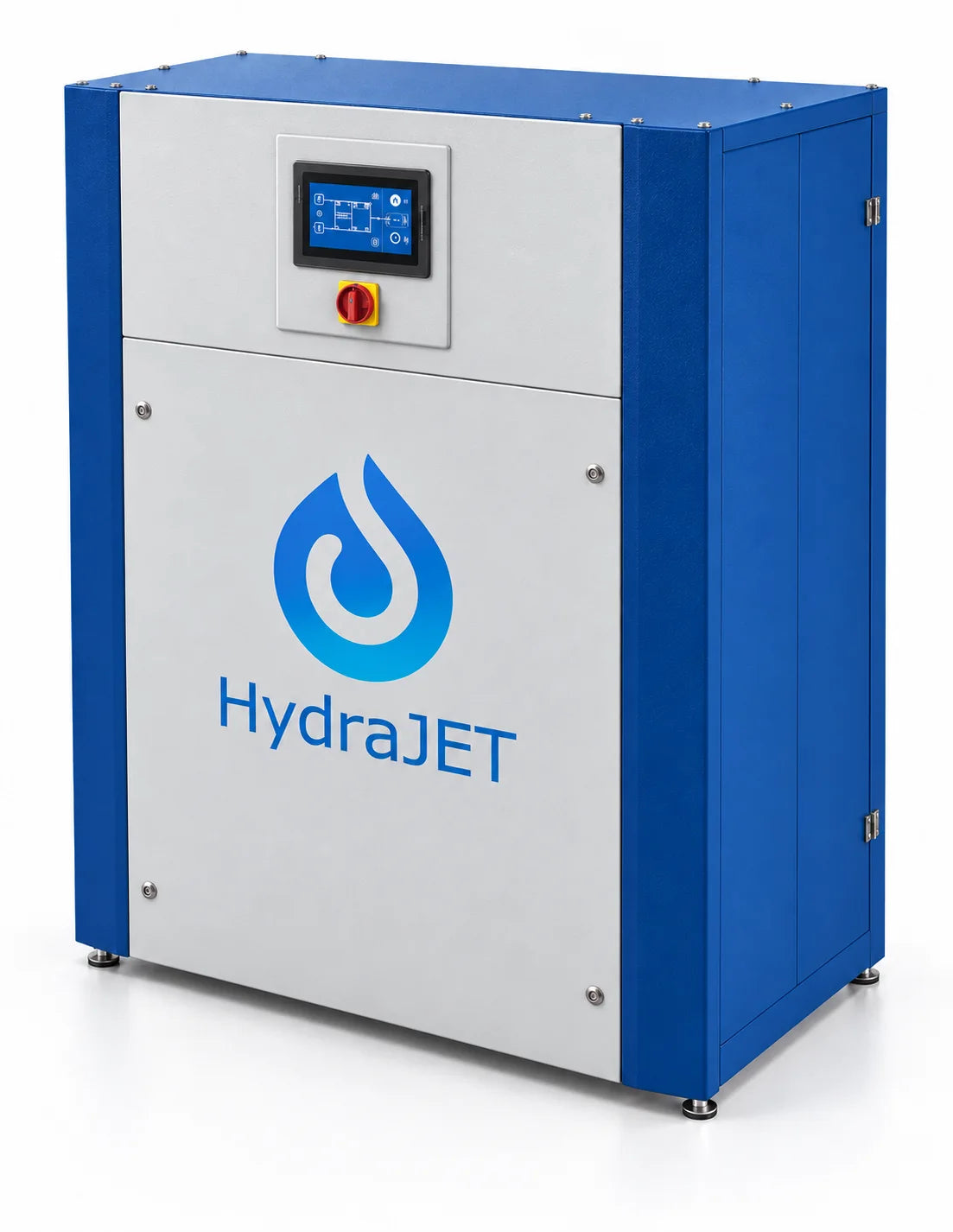

The product
Higher output RO, enclosed for a clean installation.
HydraJET provides industrial reverse osmosis capacity in a compact enclosed format. The package is factory assembled, wired and tested, with a 60 litre integral tank, two 20 inch inlet cartridges, separate permeate and concentrate indication and straightforward access for routine maintenance.
Published figures provide a selection basis. Guaranteed performance is confirmed from the approved water analysis, operating conditions and project design.
Lowara pump with integrated variable speed drive
Six, nine, ten or twelve HCULP4040 membrane elements
Two 20 inch carbon cartridge housings
60 litre integral break and buffer tank
Dedicated HCROC automatic RO controller
Optional Siemens PLC and colour HMI upgrade
304 stainless steel process pipework
Front and rear maintenance access
Range and selection data
Four standard output duties.
Nominal feed and concentrate flows are shown at approximately 75 percent recovery. Final recovery and permeate quality are confirmed from the water analysis.
| Model | Permeate | Feed | Concentrate | RO array |
|---|---|---|---|---|
| 1500 | 1,500 L/h | 2,000 L/h | 500 L/h | 6 x 4040 |
| 2000 | 2,000 L/h | 2,670 L/h | 670 L/h | 9 x 4040 |
| 2500 | 2,500 L/h | 3,330 L/h | 830 L/h | 10 x 4040 |
| 3000 | 3,000 L/h | 4,000 L/h | 1,000 L/h | 12 x 4040 |

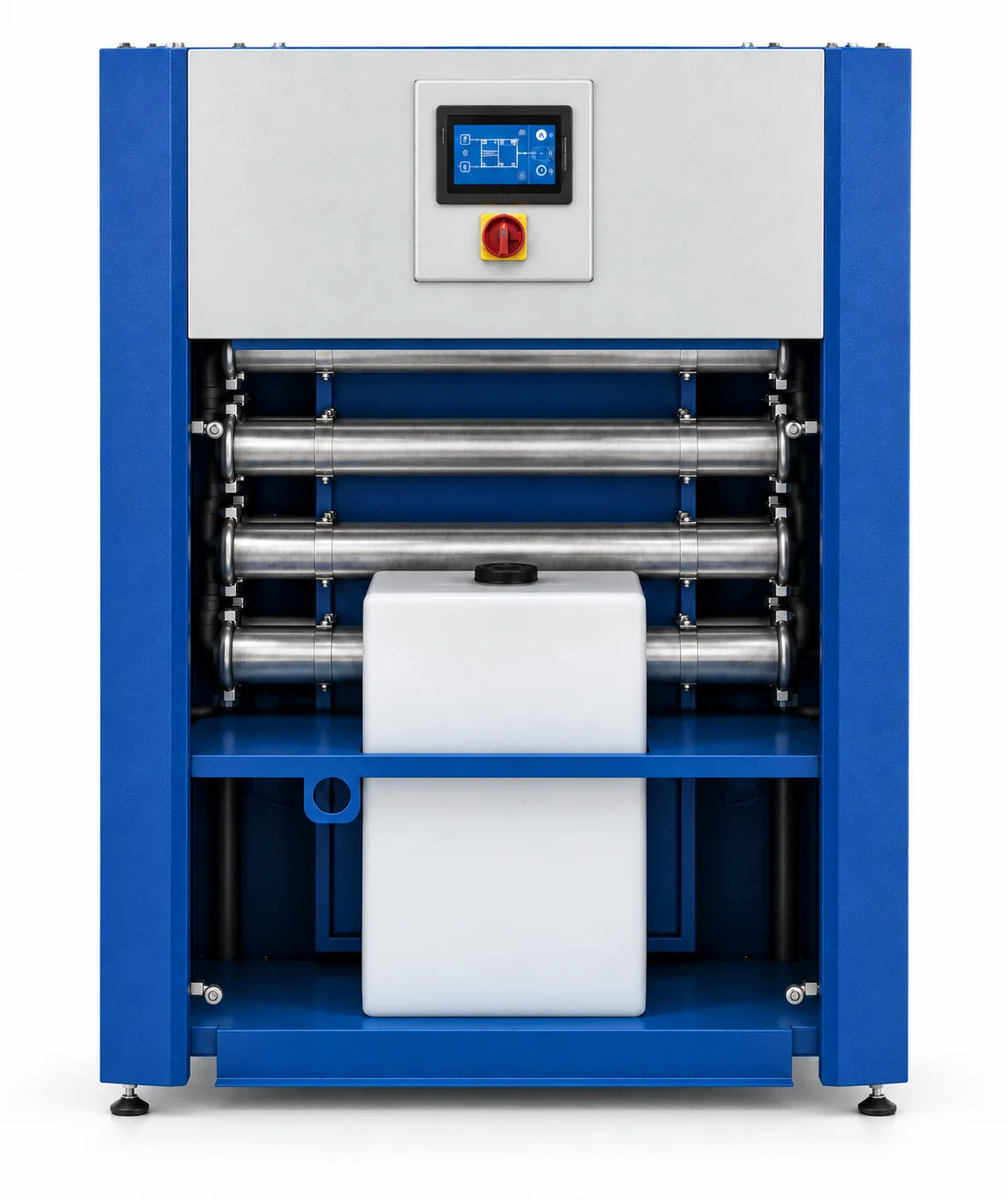

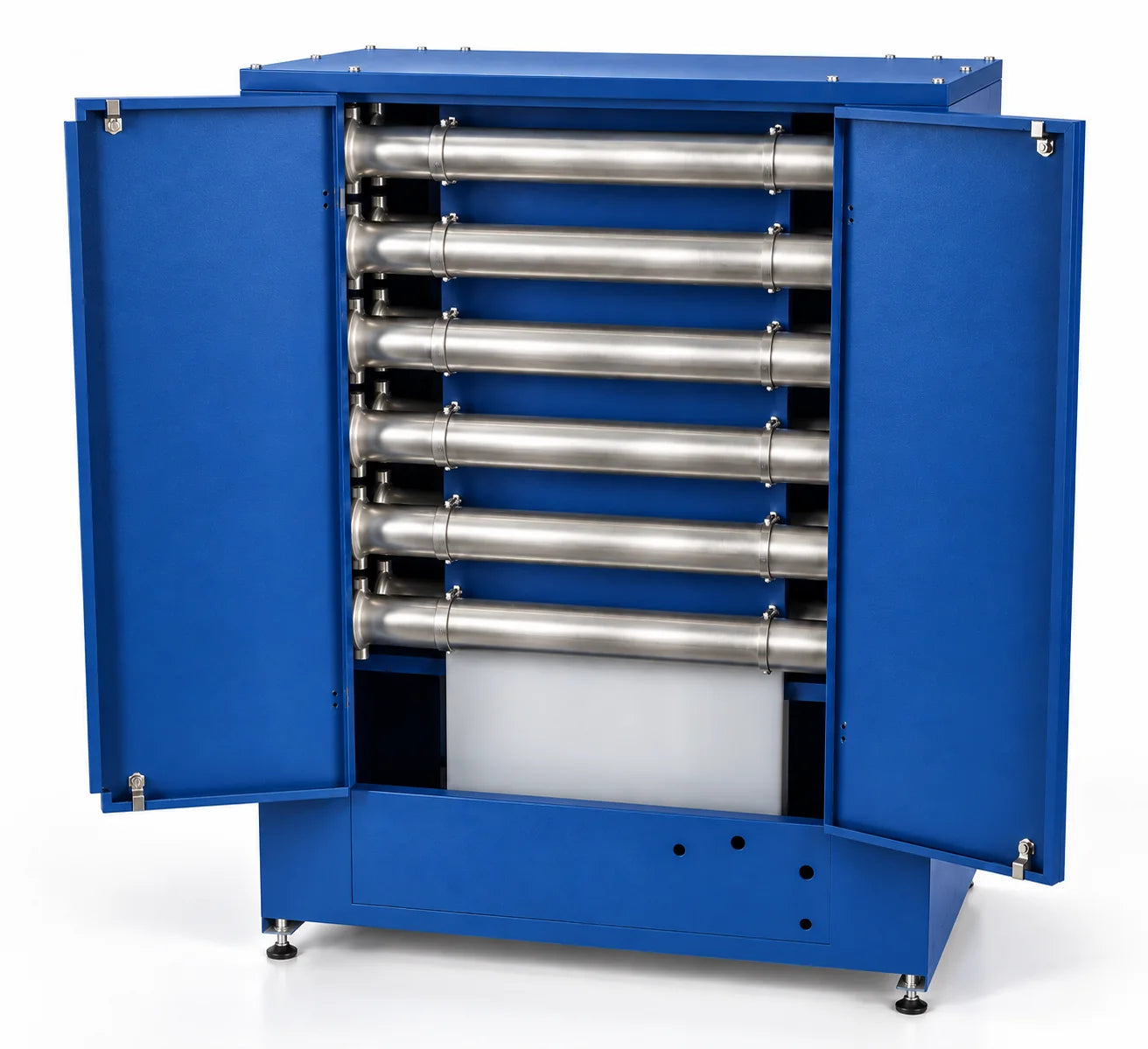

Product photography
See the equipment, layout and service access.
Explore the equipment, internal components and access provided for routine maintenance.
Typical applications
Where HydraJET fits.
Industrial process water
A self contained RO platform for general manufacturing and utility duties.
Boiler and steam make-up
Lower mineral loading can reduce scale potential, blowdown and chemical demand.
Food and beverage utilities
Consistent low mineral water for suitable production and utility applications.
Wash and rinse systems
Controlled conductivity supports repeatable cleaning and final rinse quality.
Brochures and technical data
Download the documents for HydraJET.
Product literature is also available from the central Downloads page. Keeping it here makes the specification route faster for engineers and procurement teams.
Keep the equipment performing after handover.
Discuss service supportHydra-Clear provides commissioning, planned maintenance, membrane care, resin and media replacement, spares, controls support and optimisation across equipment from every manufacturer.
